Arcana Mods & Pipeline Arcana SBS

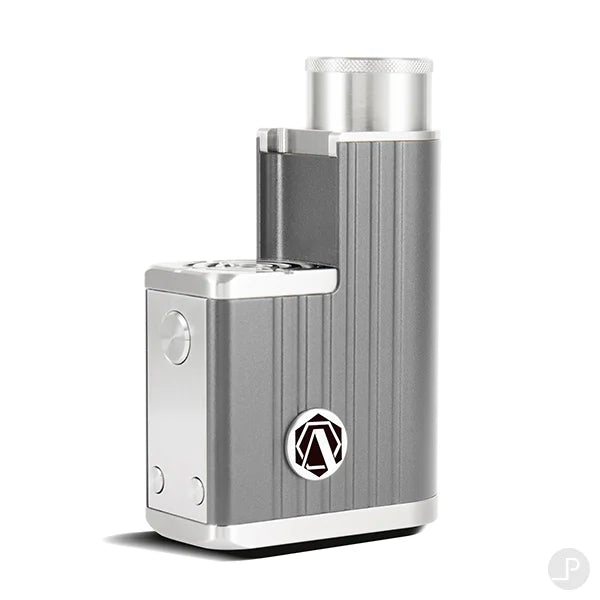

Pipeline and Arcana present their second box: ARCANA SBS

After the success of the PIPELINE BOX , Arcana Mods and PIPELINE introduce the ARCANA SBS .

The ARCANA SBS body is made of anodized aluminum , particularly resistant to scratches and contact with hands . The front, top and bottom plates, the buttons and the battery compartment are in high quality 304 stainless steel . The ARCANA SBS features a spring-loaded positive pole in beryllium copper , designed to ensure maximum conductivity.

The goal of the Arcana Mods and PIPELINE teams remains unchanged: to make high-end box mod With premium materials and solid, reliable components, the ARCANA SBS is compact, expandable, and compatible with a variety of battery sizes.

The box is designed to offer a wide audience an affordable opportunity to enter the high-end world.

To meet these high standards, Arcana Mods and PIPELINE have intensively tested numerous electronic components and selected the chipset ARC1 , almost perfect for this project. The electronics offer precision, temperature control, efficient battery management, a small footprint, and great reliability over time.

While the durability of the ARCANA SBS is high, Pipeline emphasizes its commitment to sustainability and customer satisfaction , offering even after the expiry of the one-year warranty a in-house repair service in Munich . The warranty is void if the device is opened or the screws are removed.

The battery can be recharged via an external charger or directly from the built-in USB-C port , up to 1.2A . Using an external charger is recommended. A small red LED indicates when the battery is charging.

Rubber bands and atomizer support

The SBS ARCANA includes two rubber bands which make it easier to unscrew the atomizers if they are too tight.

• For atomizers with a diameter of 23 mm, a single rubber band is usually sufficient.

• For 22mm atomizers we recommend using both overlapping, to ensure sufficient grip.

When applying, the rubber bands should be stretched slightly to ensure a good fit on the atomizer. Position them as low as possible on the base of the atomizer, then gently squeeze them with your thumb and forefinger and carefully unscrew. The rubberized surface improves grip without scratching the atomizer.

Display and box protection

The ARCANA SBS includes a protective film for stainless steel displays and bottom plate. The use of the film is also recommended with the sleeve , because it ensures a slightly firmer grip and protects against scratches.

The film must be positioned precisely, using the screw locations as a guide. If replacing the film, remove any glue residue before applying the new film.

Note: there sleeve shown in the last image It is not included in the package .

Main features:

• 1 W – 60 W

• 100°C – 315°C (200°F – 600°F)

• Positive spring pole in copper-beryllium

• Up to 8V output voltage

• OLED display

• Temperature control (Ni200, SS316, Titanium)

• Compatible with atomizers from 0.1Ω to 3Ω

• Reverse polarity protection

• USB-C port (max charging 1.2A)

• With serial number

• 1 year warranty (expires if the device is opened or the screws are removed)

• Customer service at Munich

Technical specifications:

• Attack: 510

• Materials: 304 stainless steel and aluminum

• Height: 63mm (box), 74.35mm with 18650 battery sleeve, 42.3mm (510 platform)

• Depth: 23 mm

• Width: 47.6 mm

• Weight: 95 g

• Positive pole: spring

• Maximum atomizer diameter: 23 mm

Package Contents:

• 1 x ARCANA SBS

• 2 x Rubber bands (help unscrew atomizers)

• 1 x Screen protector

• 1 x Package

• 1 x User Manual
